FSH-CF10 Series Constant Flow Metering Pump System

https://www.ascendtechs.com/FSH-CF10-Series-Constant-Flow-Metering-Pump-System.html

FSH-CF series is a high efficiency, high precision, high reliability digital control system based on micro-meter precision machining technology. The system maintains high precision dispensing with maximum injection efficiency. FSH-CF series pump system is a perfect solution for automatic injection and filling lines as well as fully automatic factories. The system can be widely used in lithium battery electrolyte injection, chemical dispensing, pharmaceutical drug dispensing, liquid food dispensing, etc.
According to different filling volumes and production line needs, there are various types of pumps to choose, like FSH-CF10 Series, FSH-CF22 Series, FSH-CF30 Series and FSH-CF150 Series.

FSH-CF Series Constant Flow Metering Pump System

FSH-CF series is a high efficiency, high precision, high reliability digital control system based  on micro-meter precision machining technology. The system maintains high precision  dispensing with maximum injection efficiency. FSH-CF series pump system is a perfect solution  for automatic injection and filling lines as well as fully automatic factories.  The system can be widely used in lithium battery electrolyte injection, chemical dispensing,  pharmaceutical drug dispensing, liquid food dispensing, etc.

Working Principle:

The servo motor drives the camshaft to drive the pistons to do reciprocating motion, completing the  suction and discharge of the liquid.The rotation angle between each two cams is a certain angle, so that  the suction and discharge actions are performed alternately, thereby eliminating pulsation and  achieving pulsation-free and high-efficiency liquid injection.

System Features:

•  Explosion-proof metering pump. CE 、UL、 ATEX certification by TÜV SÜD

•  High efficiency. CF150 series up to 150ml/s

•  Pulse free. No pump jamming or leaking

•  High pressure. Up to 1MPa

•  High precision. 0.3% or better

•  Communication: 24V I/O、Ethernet

•  Drive: Servo motor with closed loop control

•  Intelligent control

Typical Applications:

• Lithium battery electrolyte injection

• Pharmaceutical drug filling

• Chemical fluid filling

• Cosmetics fluid filling

• Food and beverage additions

• Ingredients mixing and additions






According to different filling volumes and production line needs, there are various types of pumps to choose, like FSH-CF10 Series, FSH-CF22 Series, FSH-CF30 Series and FSH-CF150 Series.

FSH-CF10 Series Constant Flow Metering Pump System

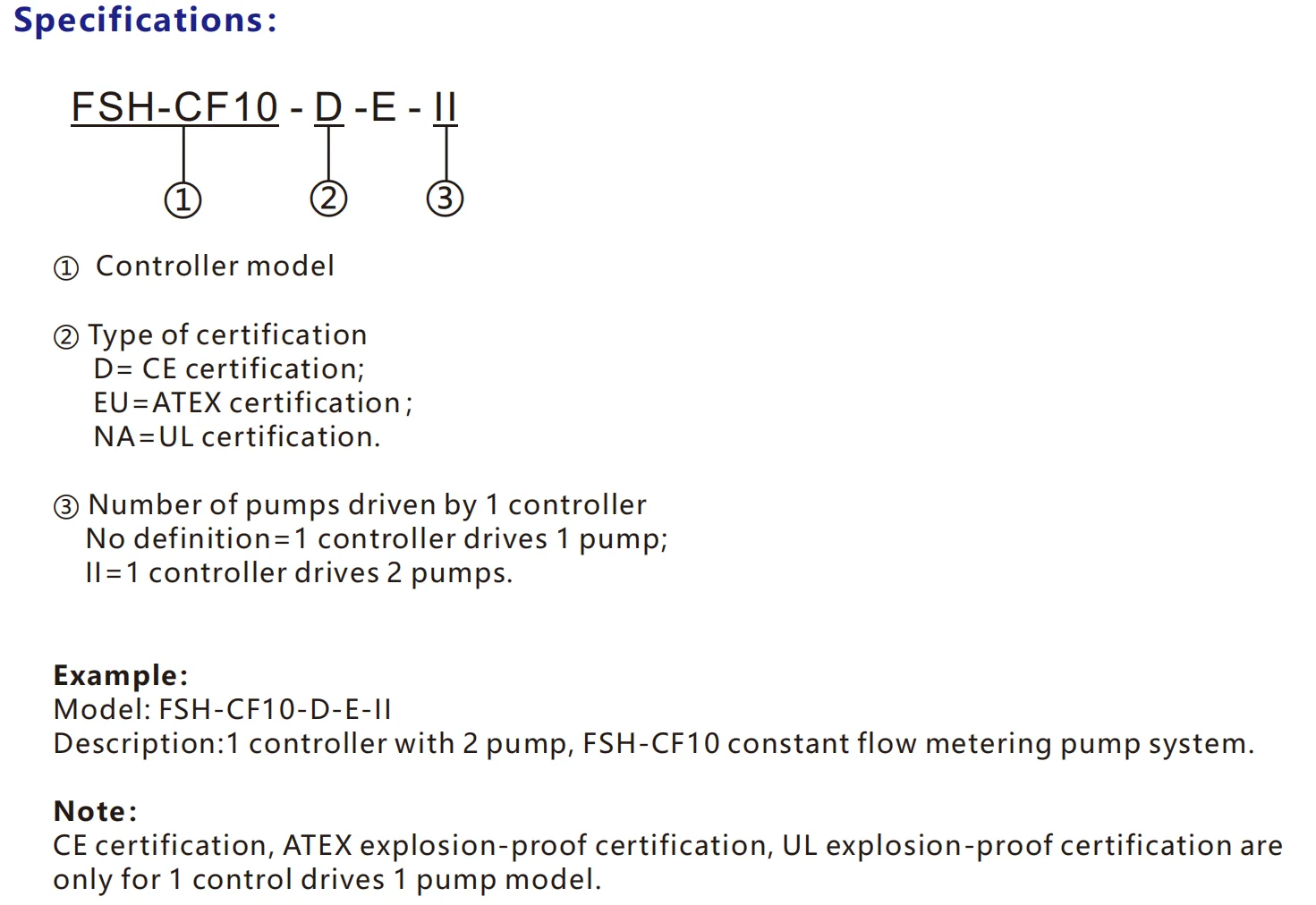

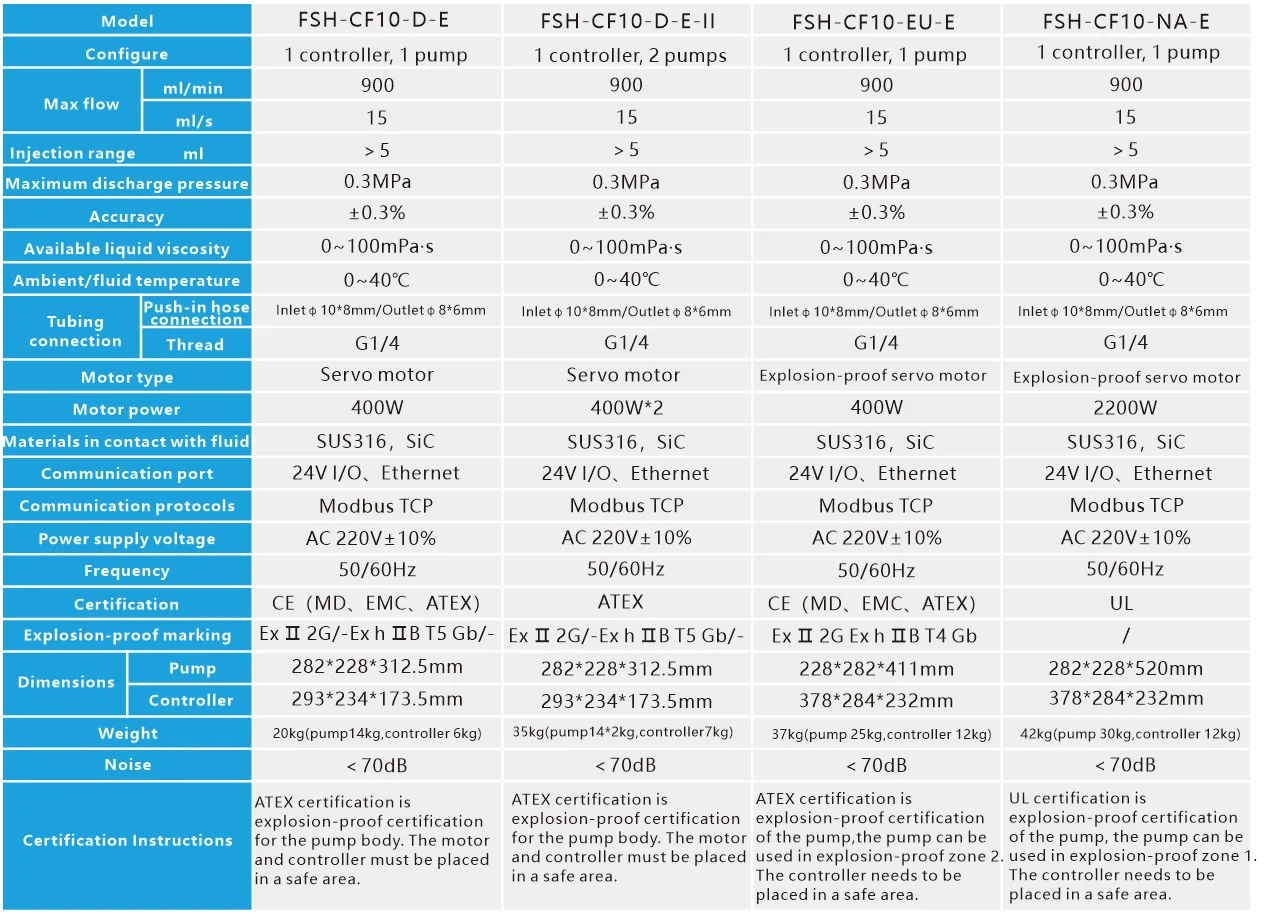

Technical Parameters：

Performance Curves：

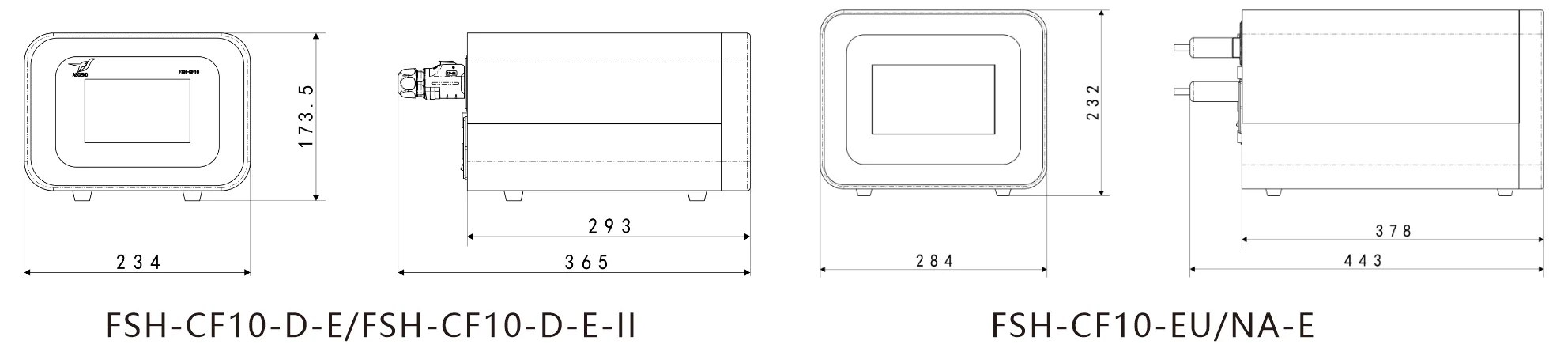

Installation Dimensions of Controller (in mm):

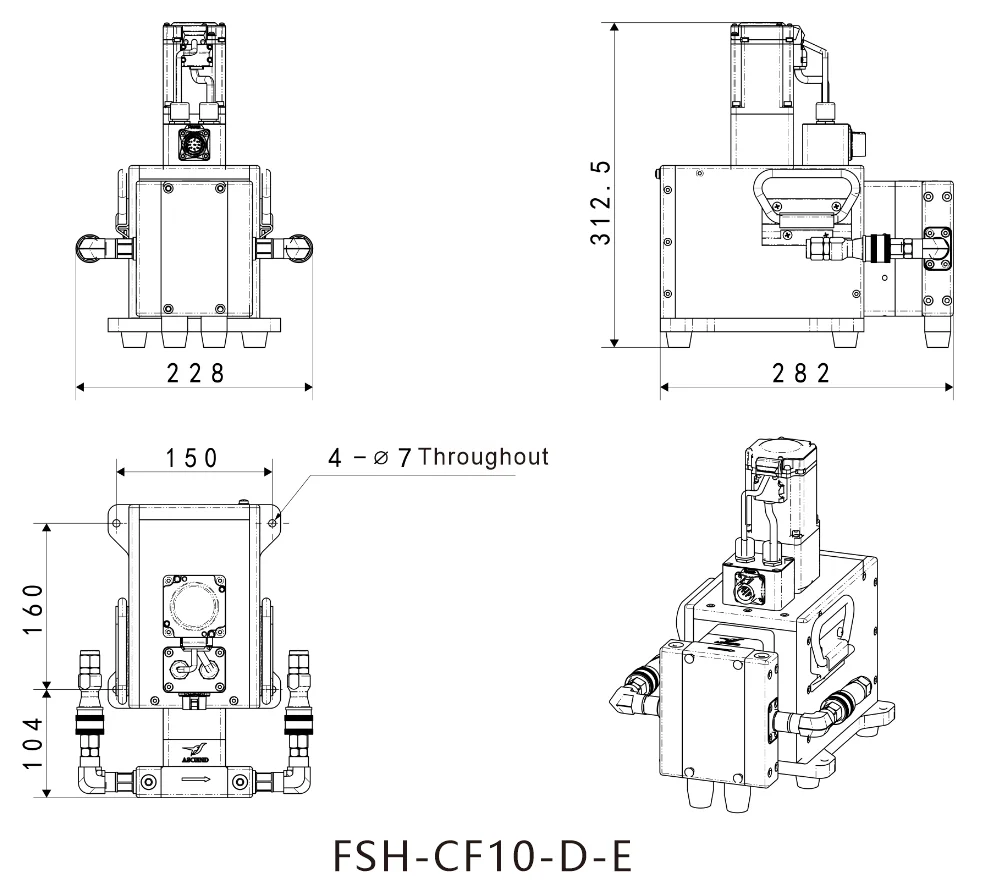

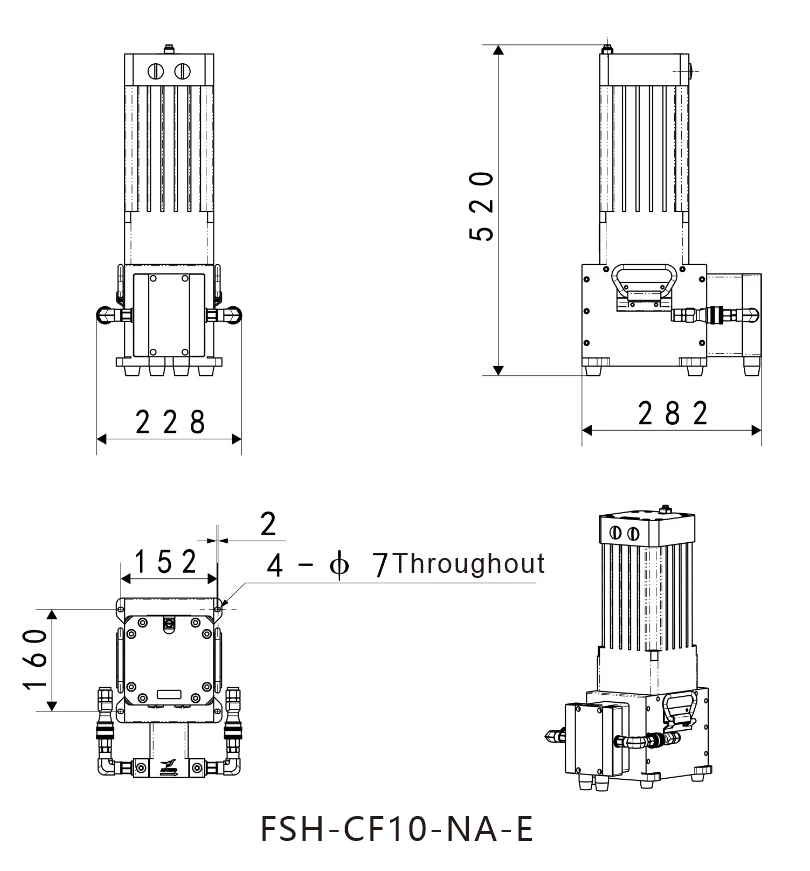

Installation Dimensions of Pump (in mm):
